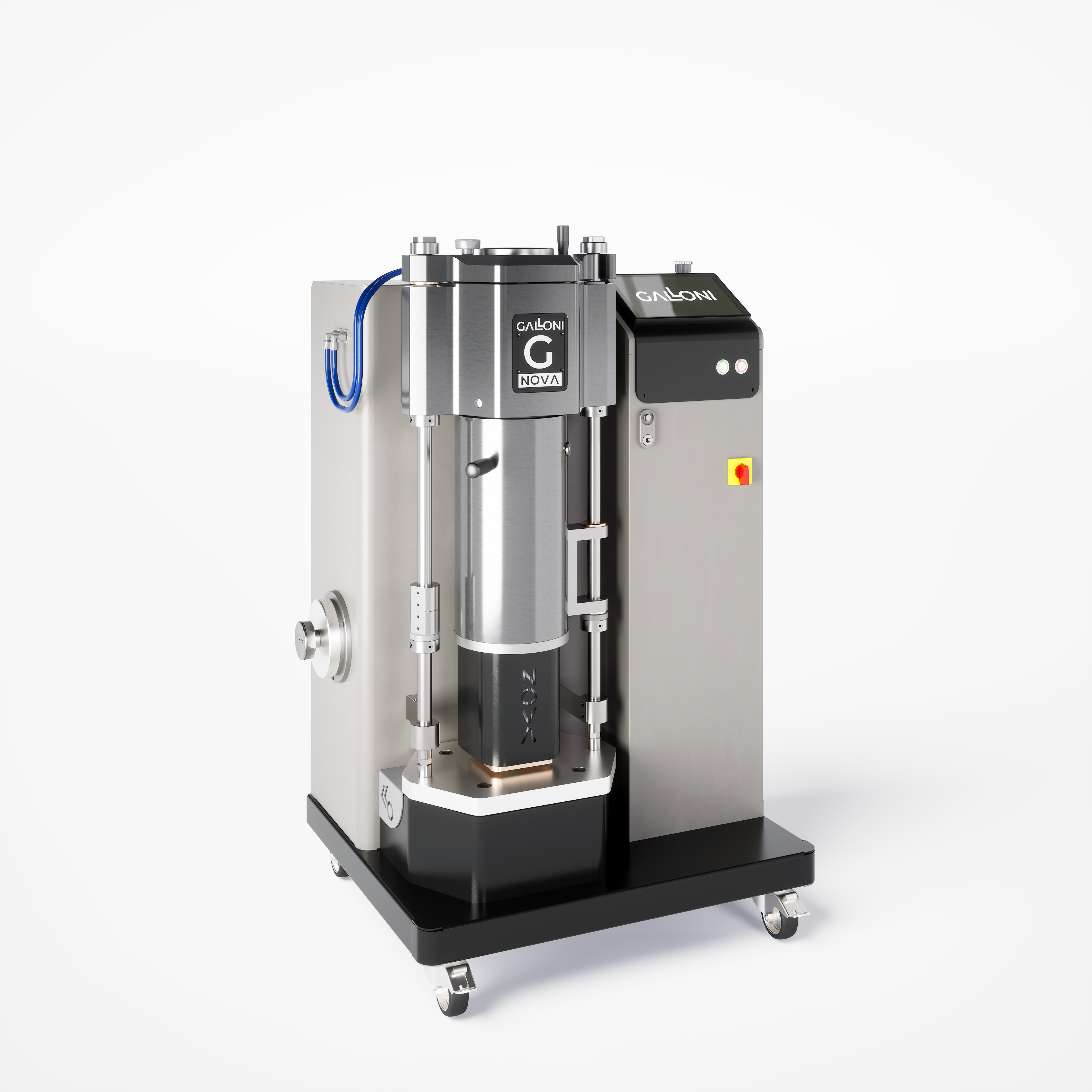

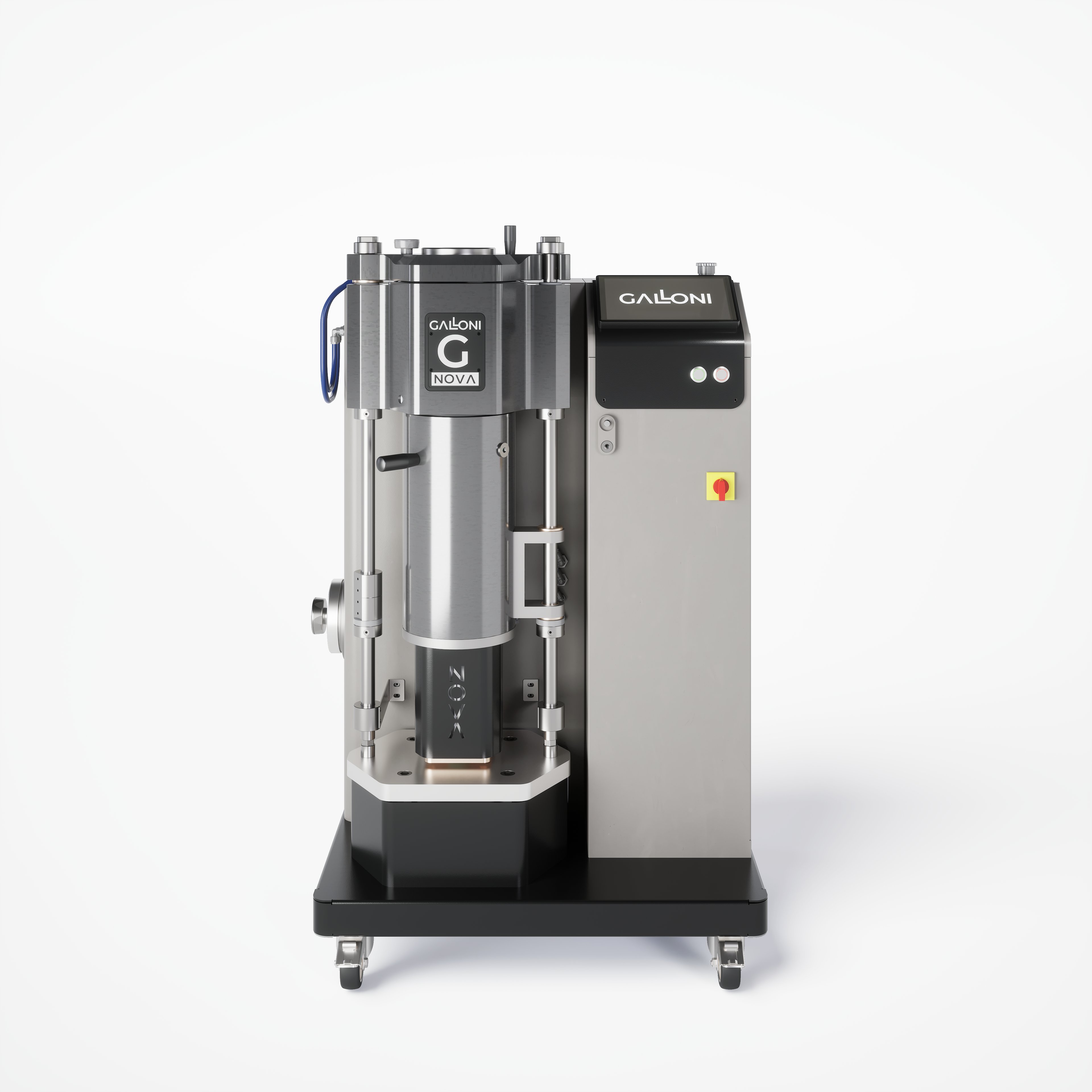

G Series

The Galloni “G” series casting machines are the latest and most technically advanced induction heated vacuum 'over pressure' machines currently available worldwide, featuring low frequency generators and fully proportional computer-controlled power output.
The operator has simply to charge the crucible, place the casting flask in position and press one button. The G series is equipped with a 7″ colour touch-screen. All machines lead the operator logically step-by-step through the casting sequence, irrespective of the type and quantity of the alloy. Frequency and power output are automatically and continuously adjusted and, just ahead of attaining the preset casting temperature, the computerized control starts modulation of the heating current by delivering low frequency impulses, which inductively stirring the melt. Then, when all parameters are achieved and the temperature 'spread' is no more that 4°C either side of the set point, pouring starts automatically followed by strong pressurization of the molten metal by inert gas. The complete cycle can be performed in 7 minutes.
read more
G Series
G Series
G Series
G Series

Highlights

  • Crucible bottom opening in Galloni casting machine is made at zero distance from flask hence there are no chances of leakage
  • Provided with analogue and digital gauges to justify real vacuum and pressure while casting process.l
  • Machine is provided with a strong vacuum pump of 60 m3h
  • Ready casting programs help operator to run machine on continuous basis.
  • Less metal loss

For more information download the product flyer or send us a request.

Induction Vacuum Pressure Casting machine for Jewellery Industry

  • G1 Ultimate
  • - MAX. CRUCIBLE CAPACITY: 240 cc (1400 gr Au 18 kt, 1200 gr Ag 925)
  • - FLANGELESS FLASK: max. mm 150 diam. x 250 mm h max.
  • - EXTERNAL VACUUM PUMP: 60 m3/h
  • - ELECTRICAL: Three phase 230 V – 50/60 Hz – 6 kW (separated transformer for tension 400/415 V)
  • - OVERALL DIMENSIONS AND WEIGHT: base mm 750 x 650 x 1200 h - kg 210
  • G3 Ultimate
  • - MAX. CRUCIBLE CAPACITY: 240 cc (2200 gr Au 18 kt, 2000 gr Ag 925
  • - FLANGELESS FLASK : Max 150 mm Dia * Max 300 mm Height
  • - EXTERNAL VACUUM PUMP: 60 m3/h
  • - ELECTRICAL: Three phase 230 V – 50/60 Hz – 10 kW (separated transformer for tension 400/415 V)
  • - OVERALL DIMENSIONS AND WEIGHT: base 750 x 650 mm x h 1200 mm, 222 KG
  • G5 Ultimate
  • - MAX. CRUCIBLE CAPACITY: 470 cc (4000 gr Au 18 kt, 3500 gr Ag 925) Larger crucible 1000 cc available for Bronze, Brass and Aluminium
  • - FLANGELESS FLASK : max 200 mm dia * 400 mm h max
  • - EXTERNAL VACUUM PUMP: 60 m3/h
  • - ELECTRICAL: Three phase 230 V – 50/60 Hz – 10 kW (separated transformer for tension 400/415 V)
  • - OVERALL DIMENSIONS AND WEIGHT: base 780 x 750 - h 1300 mm, 375 Kg
